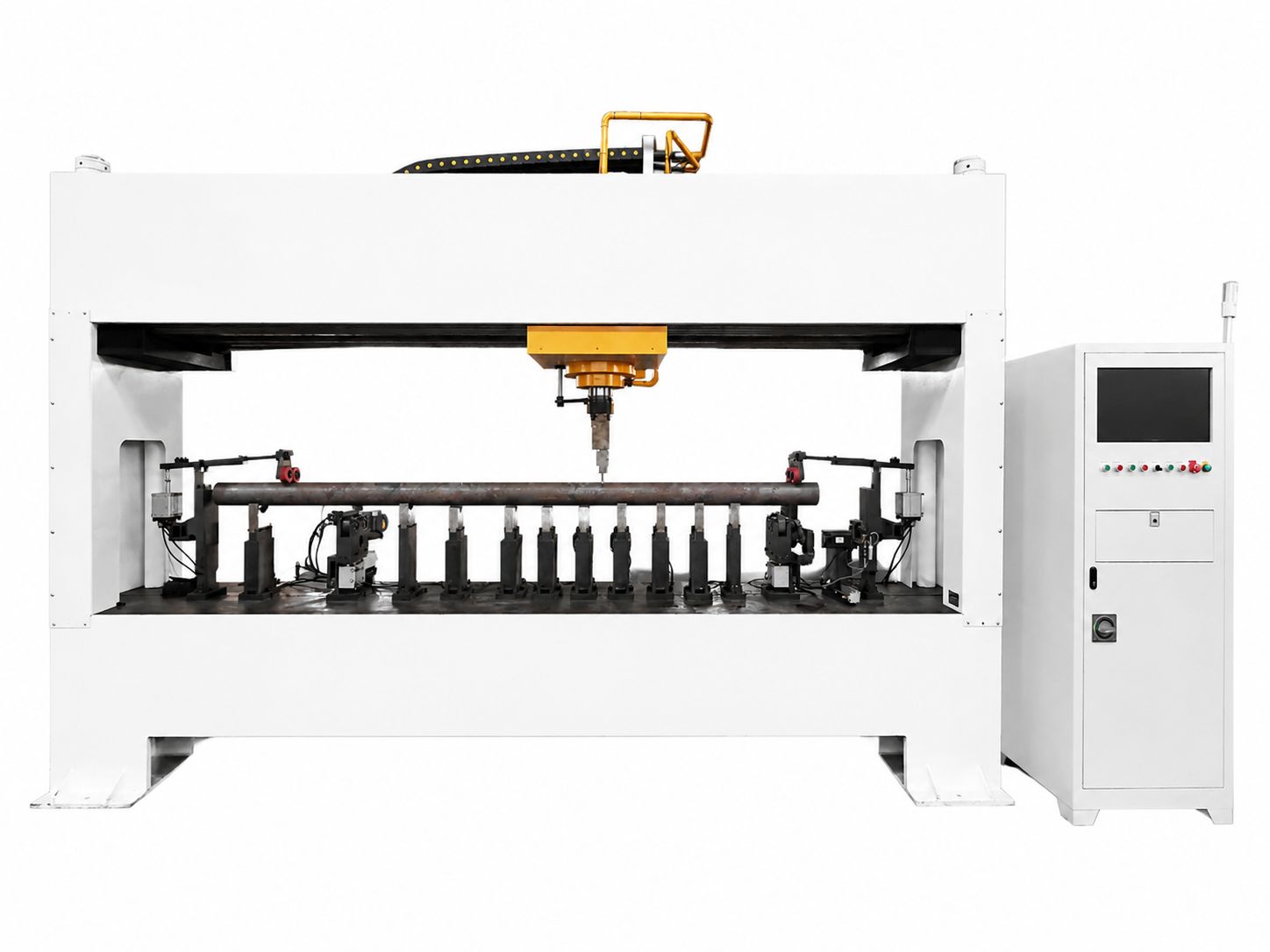

Automatic Hydraulic Pipe Straightening Machine
Closed-loop hydraulic straightening for tubes, pipes, and cylindrical workpieces. Multi-point laser measurement with AI-driven force vector correction. Delivers verified straightness down to ±0.01mm across full workpiece length.
Straightening Speed That Keeps Pace With High-Volume Production
Every second of cycle time matters when you are running a production line. This machine processes standard workpieces in 30 seconds to 2 minutes per cycle, and it supports automatic loading and unloading systems so the line does not stop between parts. A single production line equipped with this straightener consistently exceeds 1,000 finished pieces per day. For metal processing facilities and tube manufacturing operations where daily output directly determines profitability, that throughput changes the arithmetic on every job.
Actual cycle time depends on workpiece diameter, wall thickness, and initial deflection. The PLC optimizes the number of correction strokes automatically — thinner-wall tubes often complete in under 45 seconds.
With automated infeed and outfeed conveyors integrated, the machine runs continuously. Operators oversee multiple lines simultaneously rather than standing at a single press.
Compared to a skilled operator using a conventional hydraulic press with manual measurement, this machine more than triples throughput while eliminating the inconsistency that comes with operator fatigue across a shift.
Multi-Point Measurement With AI Force Vector Control
Straightening is not just about applying pressure — it is about knowing exactly where, how much, and in which direction. This machine uses an array of high-resolution sensors positioned at multiple points along the workpiece to capture the true deflection profile, not just a single midpoint reading. The control system then calculates the optimal correction force vector for each stroke.
The AI algorithm adapts correction parameters in real time. When you switch from one batch of tubes to another — different material, different diameter, different wall thickness — the system adjusts the force vector automatically based on the measured deflection characteristics. No manual parameter tuning. No trial-and-error strokes that waste material. The measurement system is also unaffected by surface oxide scale, which is a common pain point with optical sensors on hot-rolled or pickled tube stock.

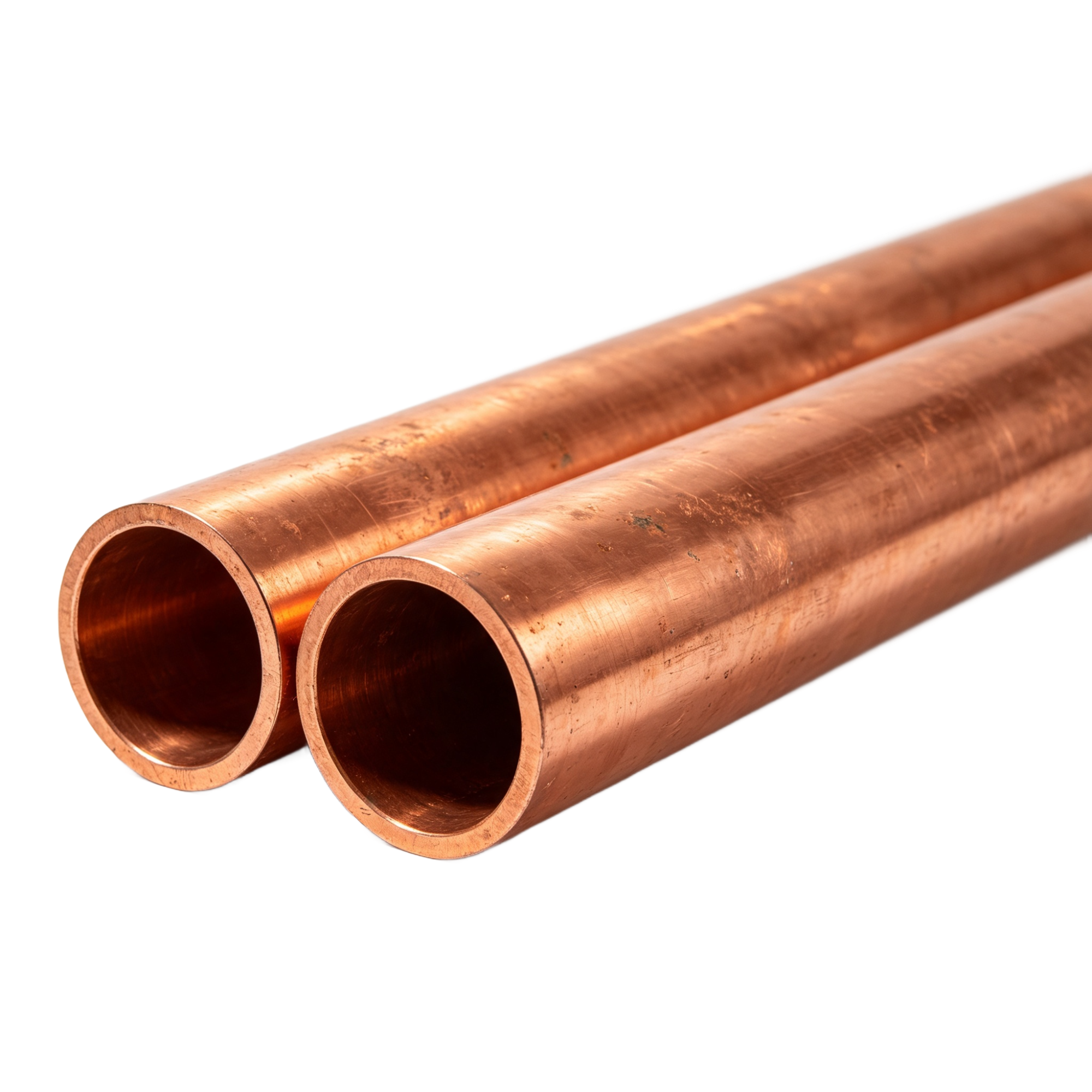

Copper tube — a material where over-correction causes immediate scrap. The closed-loop system applies only the minimum force needed.Replace Manual Straightening. Recover Your Margins.
Manual hydraulic straightening is slow, inconsistent, and expensive in ways that do not always show up on a direct labor calculation. When an operator over-corrects a tube and it becomes scrap, that material cost — plus the lost production time — erodes margin silently. This machine addresses all three cost drivers at once.
One operator can manage multiple machines. The automatic loading and unloading system handles material flow, and the closed-loop correction eliminates the need for a skilled straightening specialist at every station. Your experienced people move to higher-value work — setup, quality inspection, process optimization — instead of repeating the same press cycle 800 times a day.
A conventional setup — operator plus hydraulic press running continuously — draws power even during manual measurement and repositioning. The servo-driven pump on this machine delivers hydraulic pressure only during the active correction stroke. Between cycles, power consumption drops to standby levels. Over a year of three-shift operation, the energy savings alone can offset a meaningful portion of the machine cost.
This is the number that procurement and finance care about most. When your material scrap loss from over-correction approaches zero, every tube that enters the machine leaves as a sellable product. For facilities processing high-cost alloys — stainless steel, duplex, Inconel, titanium — the scrap savings alone typically justify the investment within 12 to 18 months.
Engineering Data & Operating Parameters
| Machine Specifications | |
|---|---|
| Machine type | Automatic hydraulic straightening press, closed-loop CNC control |
| Straightening method | Multi-point press straightening with real-time deflection measurement |
| Control system | PLC with AI-driven force vector algorithm, touchscreen HMI |
| Measurement system | Multi-point high-resolution sensors, unaffected by surface oxide scale |
| Repeat positioning accuracy | ±0.005 mm |
| Standard tube straightness range | ±0.05 mm to ±0.5 mm (controlled) |
| Precision tube straightness range | ±0.01 mm to ±0.02 mm (controlled) |
| Cycle time | 30 seconds to 2 minutes per workpiece (material-dependent) |
| Daily output capacity | 1,000+ pieces per single production line |
| Automation compatibility | Supports automatic loading/unloading systems, conveyor integration |
| Energy efficiency | 50%+ energy savings vs. conventional manual hydraulic straightening |
| Material yield rate | 99%+ (scrap loss approaching zero) |
| Compliance | Exceeds ASME and ISO 2768 accuracy standards |

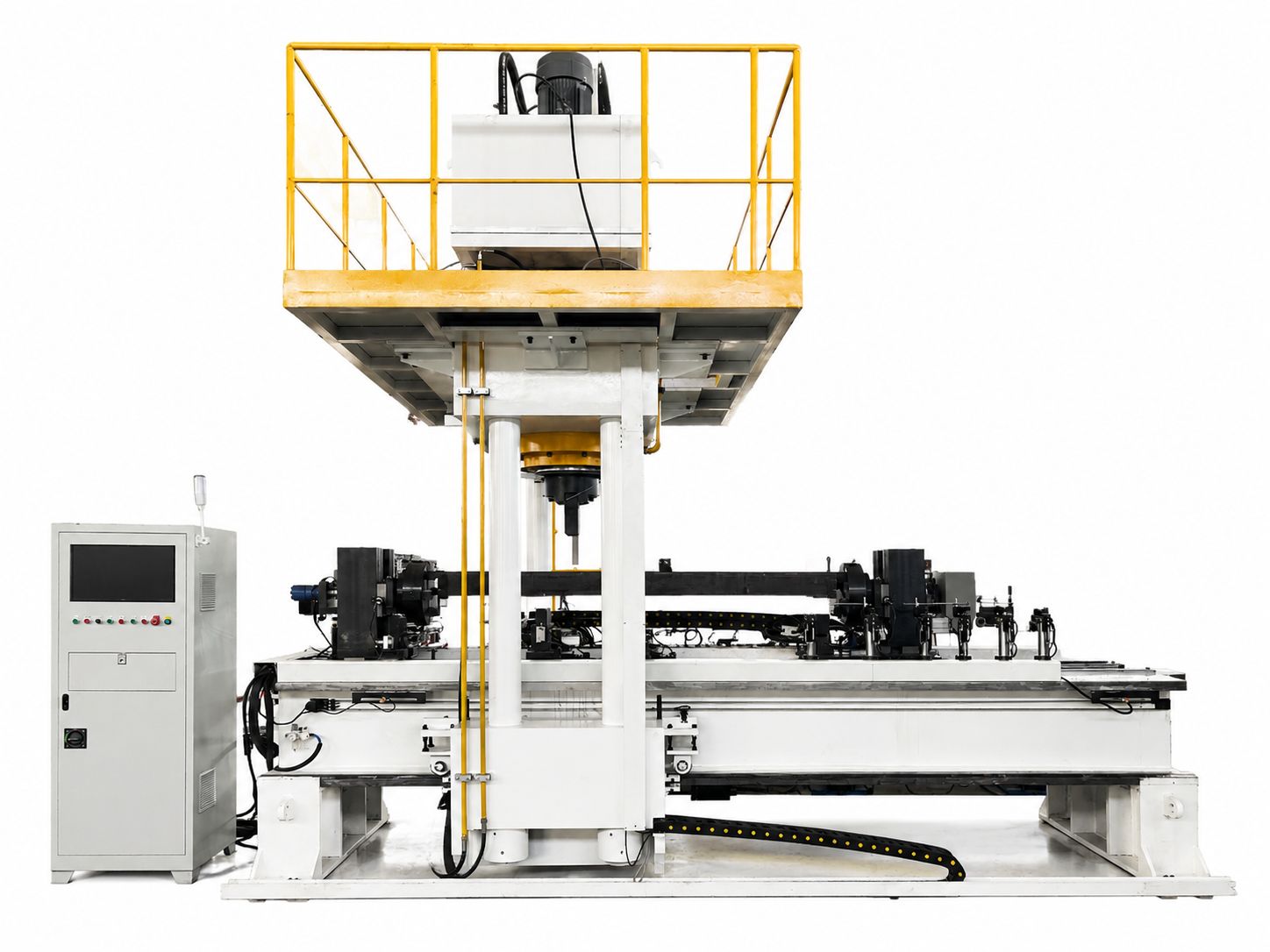

Mobile gantry configuration — available for facilities requiring flexible machine positioning or handling extra-long workpieces.Where This Machine Works Every Day

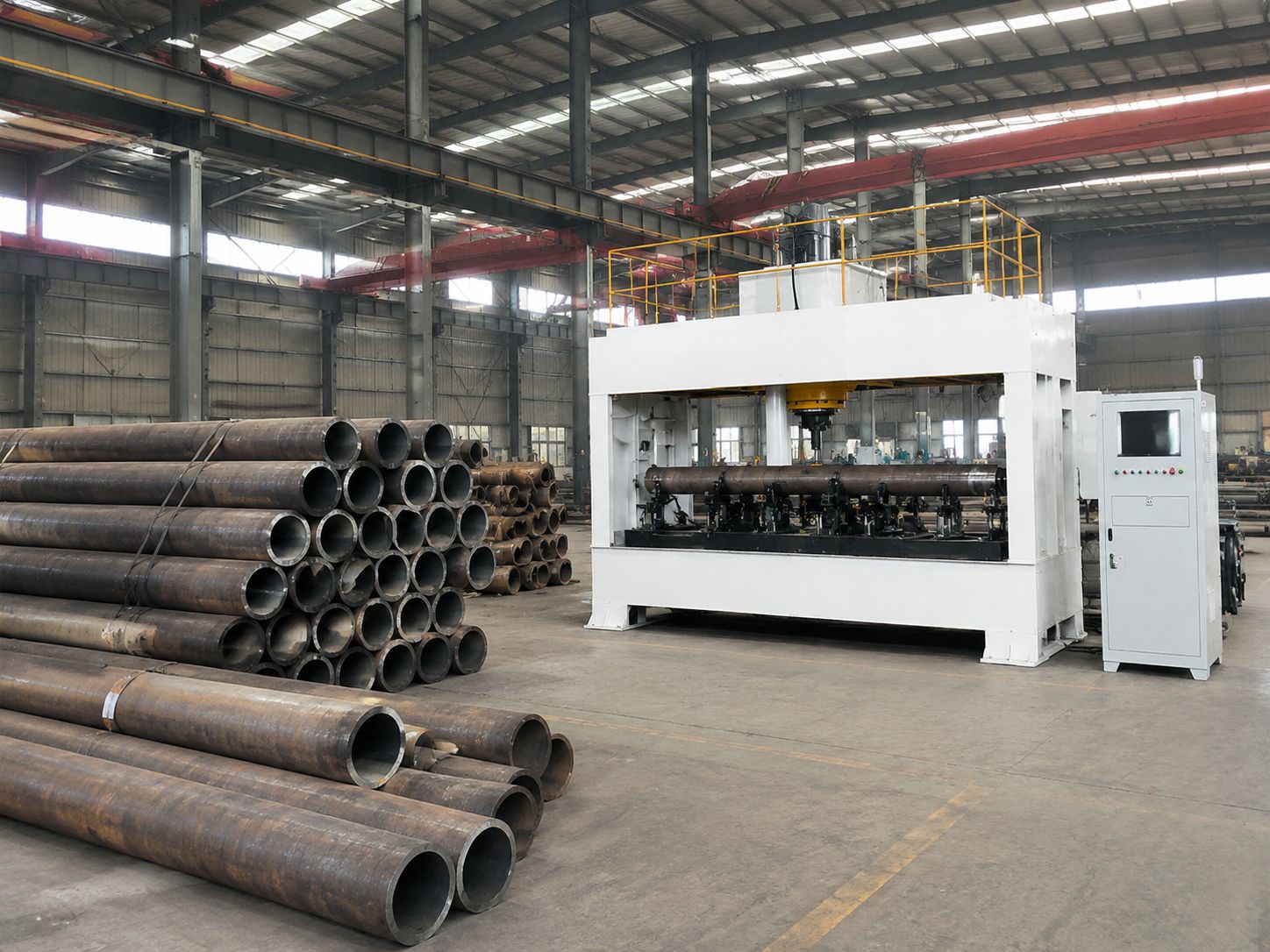

These are the production environments where our automatic straightening machines are running right now — not hypothetical use cases, but actual installed applications across multiple industries.
Construction & Structural Tubing

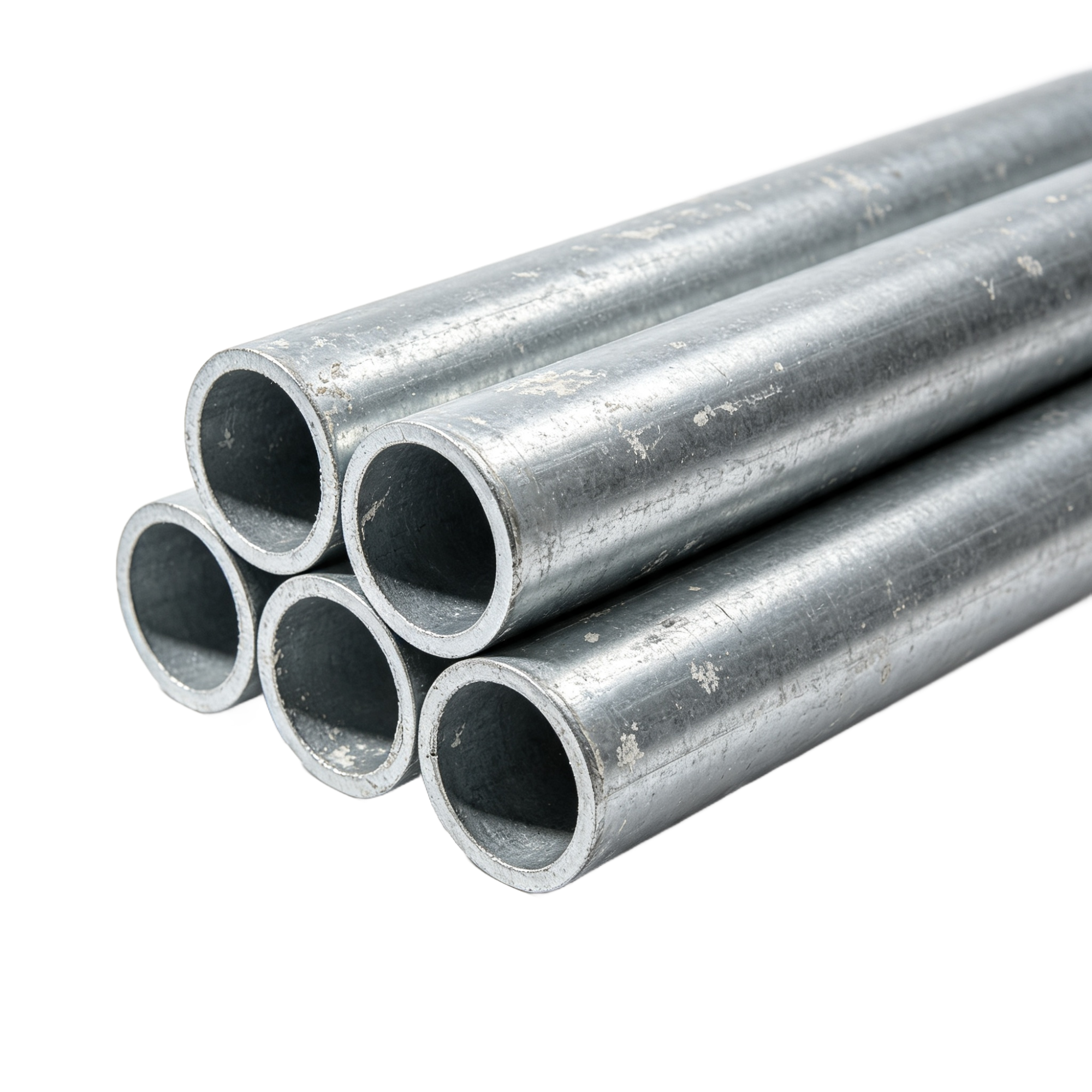

Galvanized and black steel pipes for scaffolding, structural frameworks, and building services. Straightening these after galvanizing or welding eliminates the bow that develops during thermal processing. Daily volumes here routinely exceed 800 pieces.
Automotive & Heavy Machinery
Drive shafts, axle tubes, hydraulic cylinder barrels, and structural members. In automotive tier-1 supply, straightness tolerances of ±0.02mm across a 1.5-meter tube are common. The multi-point measurement system verifies compliance on every single part.
Oil & Gas / Shipbuilding / Aerospace
High-alloy tubing, heat exchanger tubes, instrumentation lines, and hydraulic piping. In these sectors, material cost is high and scrap is expensive. The 99%+ yield rate matters most here — when you are working with duplex stainless or Inconel tubing at hundreds of dollars per meter, every piece you do not scrap goes straight to the bottom line. The system handles wall thicknesses that would challenge lesser machines without crushing or ovalizing the tube.
Ready to see what this machine can do with your actual tubes?
Send us your tube samples and target straightness specifications. We will run them through the machine and send you the measurement report — cycle time, achieved straightness, and a video of the process. No obligation, just data you can use to make your decision.
ShangDa Automation Equipment Co., Ltd. — ISO 9001 certified manufacturing. Contact: +86-XXX-XXXX-XXXX | sales@shangda-automation.com
